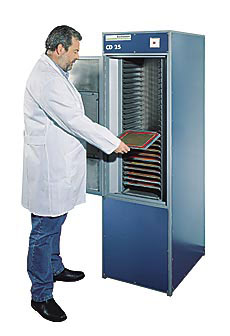

Drying Cabinet CD25
for storage and drying of up to 25 CD frames (310x310x5mm) one above the other
the CD25 is equipped with 25 drying shelves made of high grade stainless steel
the design of the support bars guarantees that the emulsified side of the screen will never be touched; each storage shelve is easily accessibly by means of a front loading door,
a powerful and efficient air blower guides air from the outside via a filtration system to the inside of the CD25; either ambient facility or heated air of up 38°C can be used for drying;
an unique aerodynamic air flow design distributes the filtered air horizontally, allowing the air to absorb humidity in the drying cabinet;
air channels guide the humid air to the outside of the drying cabinet, thus maintaining a constant fresh flow of filtered air throughout the cabinet;
a timer than can be infinitely adjusted from 0-90 min. is standard equipment and economizes the operation of the drying cabinet = energy usage is precisely defined to the time when it actually is being needed;
the CD25 is equipped with a drip pan of stainless steel to collect dripping water from the frames; the drip pan is easy ejectable for ease of the cleaning process.
| Data | |||
| electrical requirement | 230 V 1 Ph N PE 50 Hz 1,2 KW | ||
| outside dimension | (width x depth x height) approx. 550 x 750 x 1500 mm | ||
| weight approx. | 80 kg | ||
